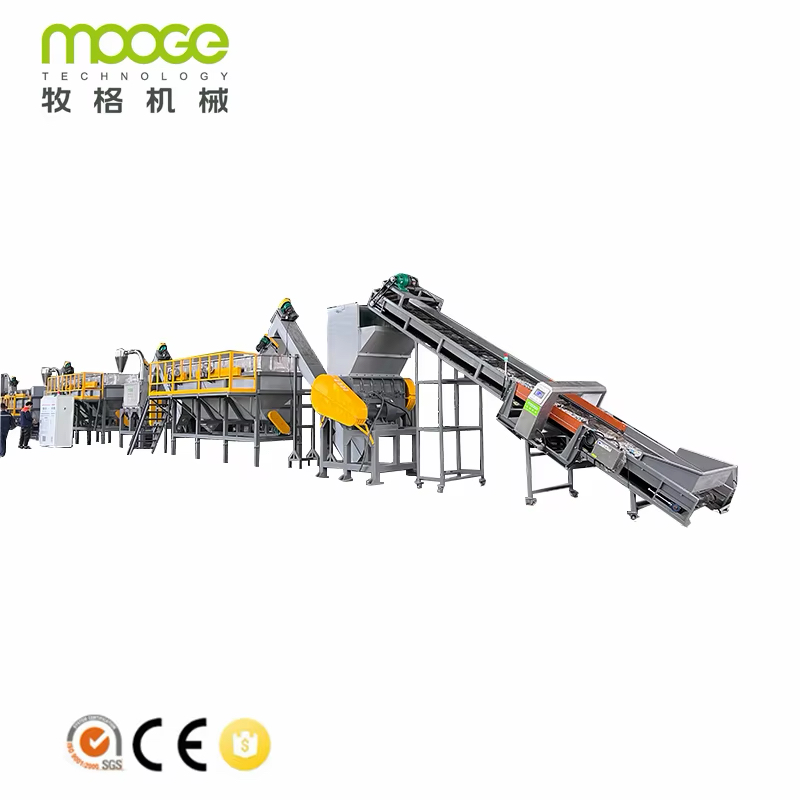

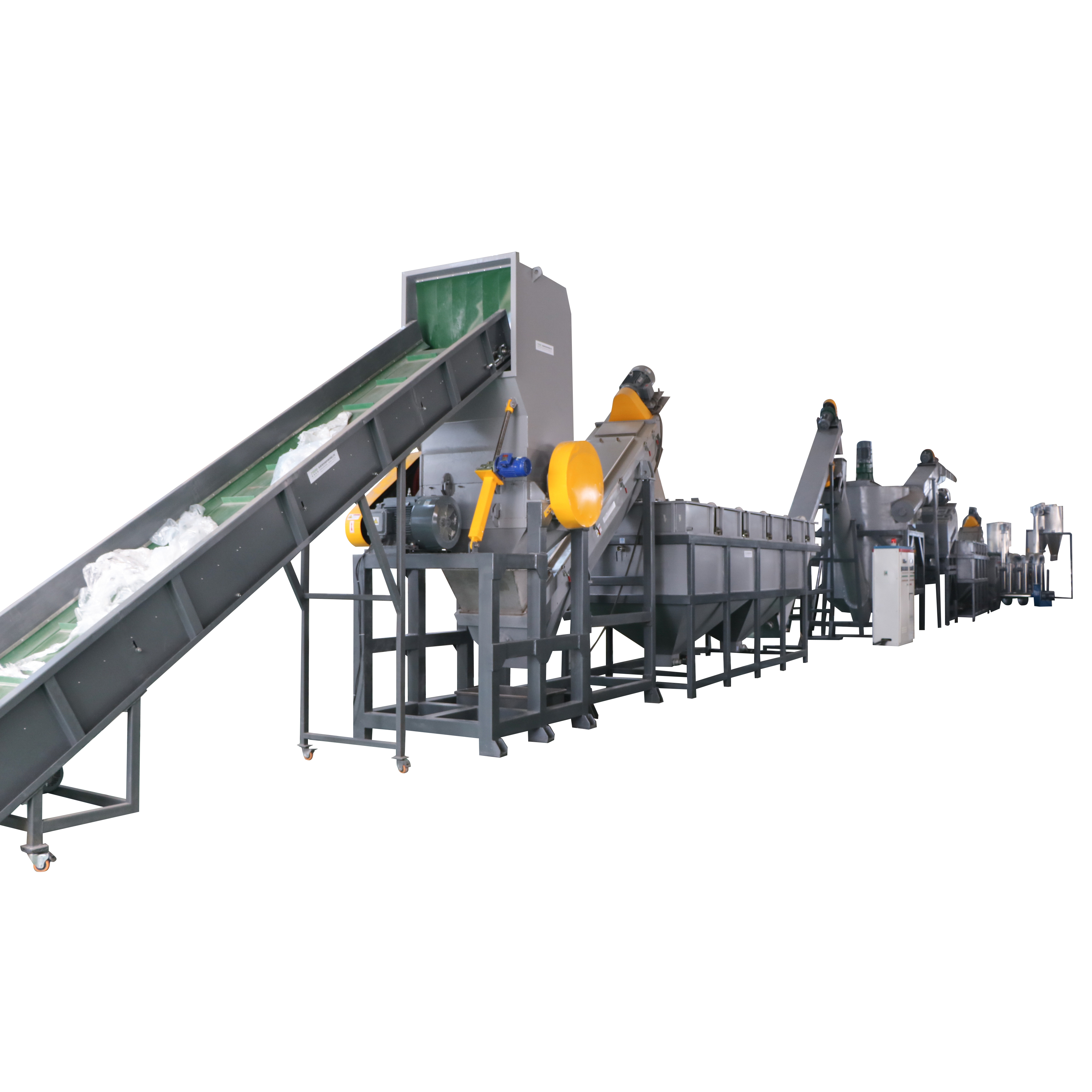

This MT-series Pet bottle plastic recycling line is mainly used to recycling the waste PET bottles, water bottles, cola bottles, PET sheet and PET packing containers, etc.

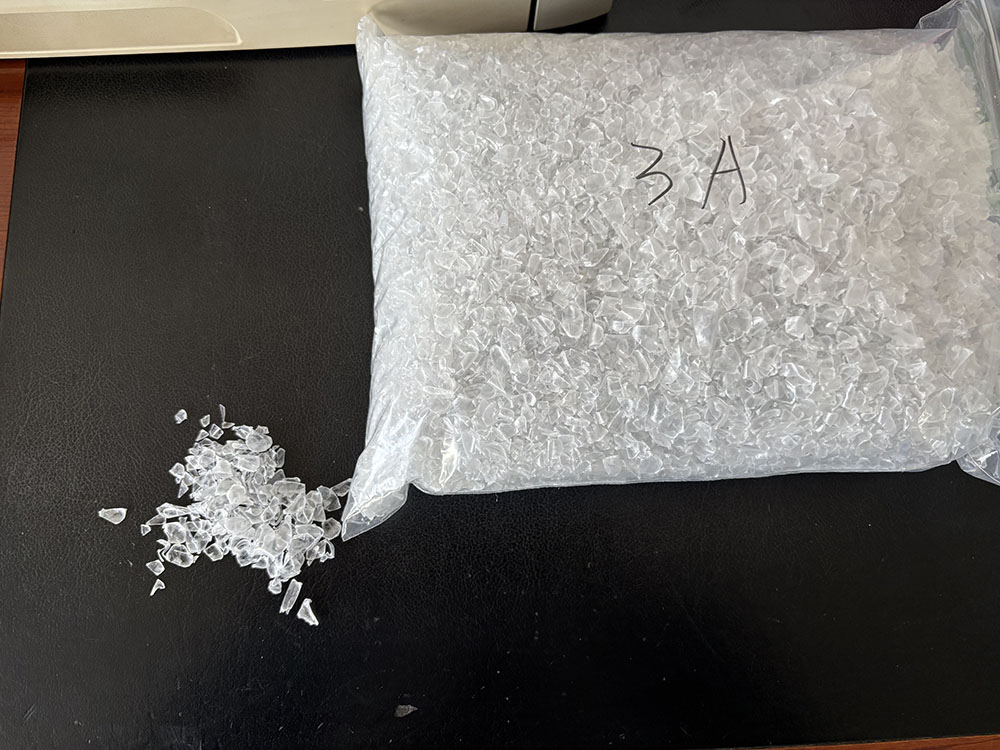

The PET bottle plastic washing line can easily remove the labels, caps, rings, glue, dirties and other impurities off from the pet plastic, finally we will get ideal PET flakes with good quality for reuse.

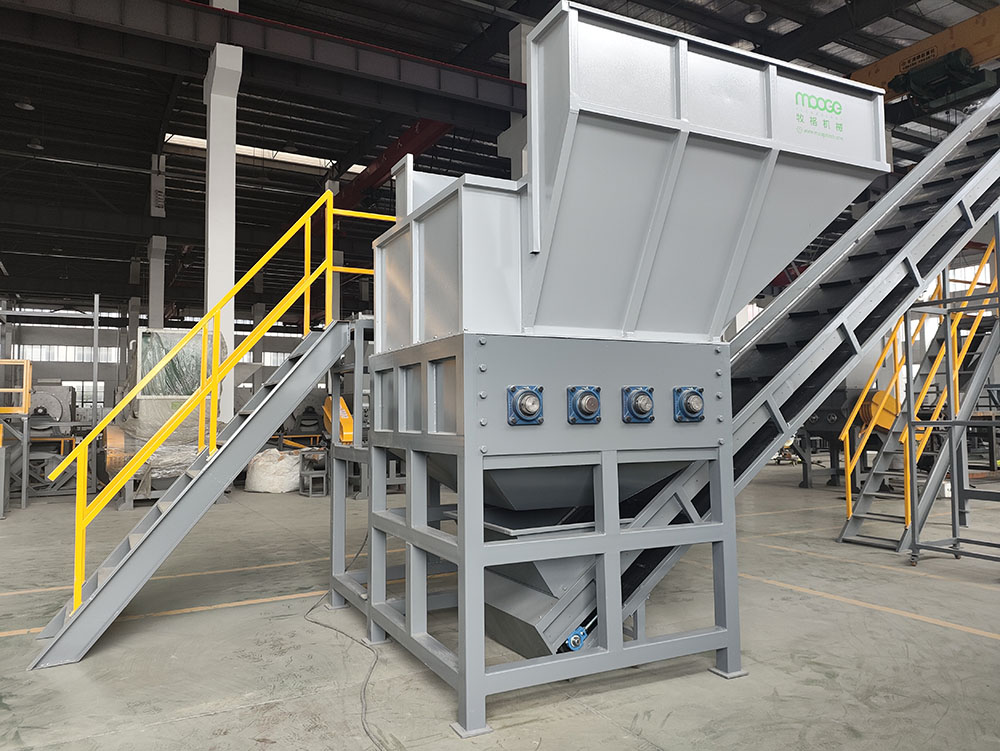

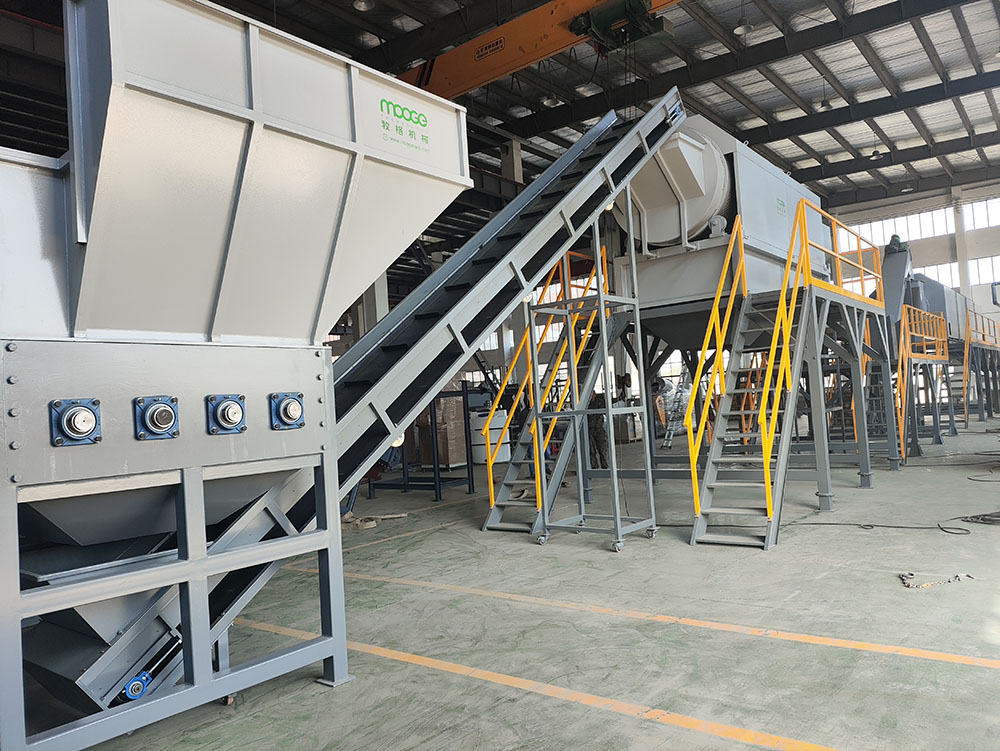

Function: Open the pressed PET bales
>With 4 roller cylinder feeding the bottles equally, motor speed adjust by inverter
>Machine chamber made by solid strong steel, claw steel is very strong with 20mm thickness.
>We can make it with forklift working platform to push the bales, or with a hopper for temporary store the bales.
| Model | Capacity | Installed Power | Steam Use | Water Supply | Manpower | Area Required |
|---|---|---|---|---|---|---|
| MT-500 | 500 kg/hr | 180 KW | 200kg | 4-5 m³/hr | 4-6 Person | 60*3.5*6 m |
| MT-1000 | 1000 kg/hr | 260 KW | 300kg | 5-7 m³/hr | 8-10 Person | 80*5*6 m |
| MT-2000 | 2000 kg/hr | 400 KW | 500kg | 10-15 m³/hr | 10-12 Person | 100*6*7 m |
| MT-3000 | 3000 kg/hr | 600 KW | 750kg | 15-20 m³/hr | 12-16 Person | 120*8*7 m |
| MT-4000 | 4000 kg/hr | 800 KW | 1000kg | 20-30 m³/hr | 15-20 Person | 160*8*7 m |
| MT-5000 | 5000 kg/hr | 1000 KW | 1200kg | 30-40 m³/hr | 15-20 Person | 175*8*7 m |
